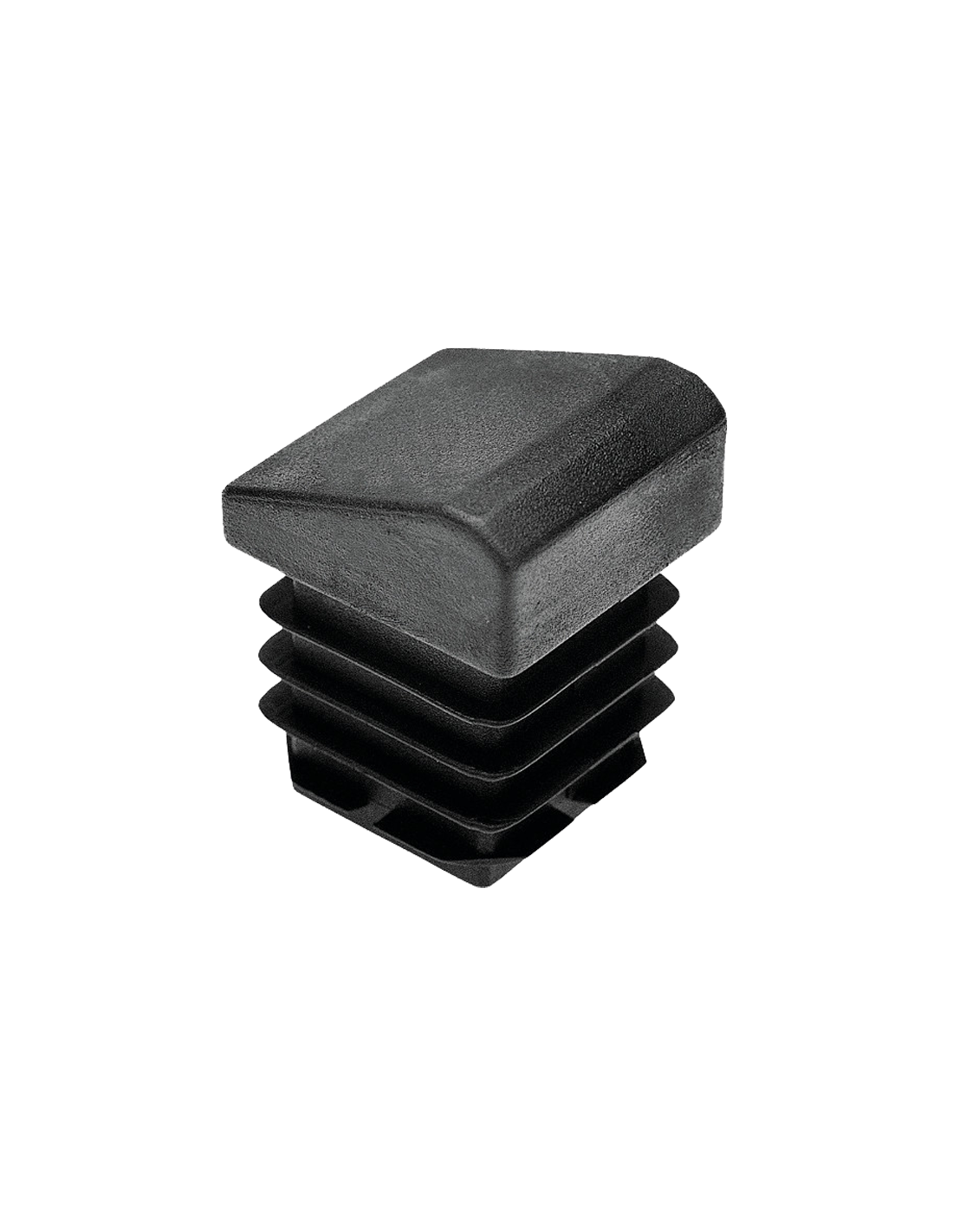

RIBBED ANGLED INSERT

PolyEthylene Low-Density (PELD)

Standard colors: black and white

Reference	Colour	Stock	External diameter	Inside diameter	B	C	α	TUBE THICKNESS	3D Model	Pdf 3D	Igs	Product Sheet	PACKAGING
31-20X20	BLACK	8000	20	15-18	19	9	20	1,0-2,5	3D	pdf	igs	pdf	500
31-20X20 BL	WHITE	1000	20	15-18	19	9	20	1,0-2,5	3D	pdf	igs	pdf	500
31-22X22	BLACK	8500	22	17-20	19	10	20	1,0-2,5	3D	pdf	igs	pdf	500
31-22X22 BL	WHITE	In Production	22	17-20	19	10	20	1,0-2,5	3D	pdf	igs	pdf	500
31-25X25	BLACK	8500	25	20-23	19	10	15	1,0-2,5	3D	pdf	igs	pdf	500
31-25X25 BL	WHITE	2500	25	20-23	19	10	15	1,0-2,5	3D	pdf	igs	pdf	500
31-30X30	BLACK	4400	30	25-28	19	10	20	1,0-2,5	3D	pdf	igs	pdf	200
31-30X30 BL	WHITE	400	30	25-28	19	10	20	1,0-2,5	3D	pdf	igs	pdf	200
